Machine technical sheet

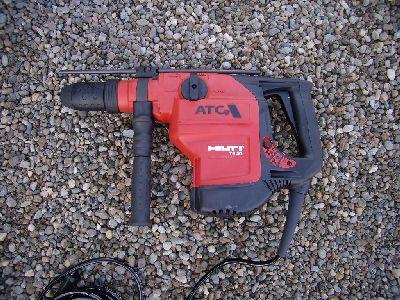

Brand: HILTI
Model: TE 56-ATC
Type: Rock drills and rotary hammers
Built in: n.d.
Weight: 6.6 kg
Power: 1.1 kW
Power supply: Electrical (220V-380V)
Anti-vibration devices: Absent
Last update: 24/07/2015
Source of the data: Acquisito sul campo da misuratore
Model: TE 56-ATC
Type: Rock drills and rotary hammers
Built in: n.d.
Weight: 6.6 kg
Power: 1.1 kW
Power supply: Electrical (220V-380V)
Anti-vibration devices: Absent
Last update: 24/07/2015
Source of the data: Acquisito sul campo da misuratore
 | Manuale di istruzioni ed uso acquisito in sede di misura/censimento (La redazione non risponde di eventuali modifiche e/o aggiornamenti apportati dal costruttore) |
 |
|||||
|
Declared values as set forth in the standard
IEC EN 60745-2-6:2003 |
|||||
| CONDITIONS | MATERIAL | ACCESSORY | VALUE | K(1) | Note |
| NOT ASSESSED | NOT ASSESSED | NOT ASSESSED | 16 m/s2 | 1.5 | Drilling into concrete |
| NOT ASSESSED | NOT ASSESSED | NOT ASSESSED | 13 m/s2 | 1.5 | Chiselling on loading device (ball absorbed) |
Measurements in the field (Click to view the measurements in the field)
Reference person:
CPT Torino ([email protected])
Location: VISCHE (CN) on 15/02/2007
Features of the accessory: Pick, moil point
Values related to the vibration worst case handle ( Anterior )
Location: VISCHE (CN) on 15/02/2007
Features of the accessory: Pick, moil point
| Conditions of measurement |
Values related to the vibration worst case handle ( Anterior )
|
A hx (Mean) 11.1 m/s2 |
A hy (Mean) 9.9 m/s2 |
A hz
(Mean) 5.4 m/s2 |
A hv sum 15.8 m/s2 |
|
Standard deviation 1.16 m/s2 |
Standard deviation 0.08 m/s2 |
Standard deviation 0.14 m/s2 |
Standard deviation x 1,645: 1.31 m/s2 |
|
Mean + Standard deviation: 12.3 m/s2 |
Mean + Standard deviation: 10 m/s2 |
Mean + Standard deviation: 5.5 m/s2 |
A hv sum + (Dev. std. x 1,645): 17.1 m/s2 |
Reference person:
CPT Torino ([email protected])
Location: VISCHE (CN) on 15/02/2007
Features of the accessory: NOT ASSESSED
Values related to the vibration worst case handle ( Anterior )
Location: VISCHE (CN) on 15/02/2007
Features of the accessory: NOT ASSESSED
Values related to the vibration worst case handle ( Anterior )
|
A hx (Mean) 8.4 m/s2 |
A hy (Mean) 5.4 m/s2 |
A hz
(Mean) 4 m/s2 |
A hv sum 10.8 m/s2 |
|
Standard deviation 0.64 m/s2 |
Standard deviation 0.28 m/s2 |
Standard deviation 0.49 m/s2 |
Standard deviation x 1,645: 0.93 m/s2 |
|
Mean + Standard deviation: 9 m/s2 |
Mean + Standard deviation: 5.7 m/s2 |
Mean + Standard deviation: 4.5 m/s2 |
A hv sum + (Dev. std. x 1,645): 11.7 m/s2 |
|
|
