Machine technical sheet

Measurements in the field (Click to view the measurements in the field)

0.5 m/s²

WORK ACTIVITY: PASSENGER TRANSPORT
SECTOR: Passenger transport by road
ACCESSORY: IRRELEVANT
Ground / road conditions: Road: smooth (or good condition)
Forward speed (IN ITALIAN): moderata

0.9 m/s²

WORK ACTIVITY: PASSENGER TRANSPORT
SECTOR: Passenger transport by road
ACCESSORY: IRRELEVANT
Ground / road conditions: Road: smooth (or good condition)
Forward speed (IN ITALIAN): moderata

0.5 m/s²

WORK ACTIVITY: PASSENGER TRANSPORT
Features of the work activity (in ITALIAN): Guida su linea urbana
SECTOR: Passenger transport by road
ACCESSORY: NOT ASSESSED
Features of the accessory (in ITALIAN): Autobus urbano
Ground / road conditions: Road: smooth (or good condition)
Forward speed (IN ITALIAN): lenta

VDV_8h

VDV_8h

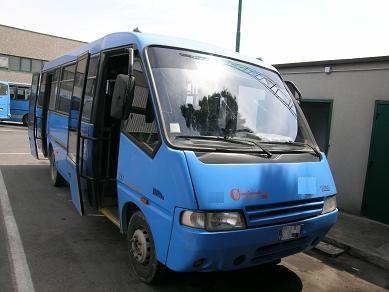

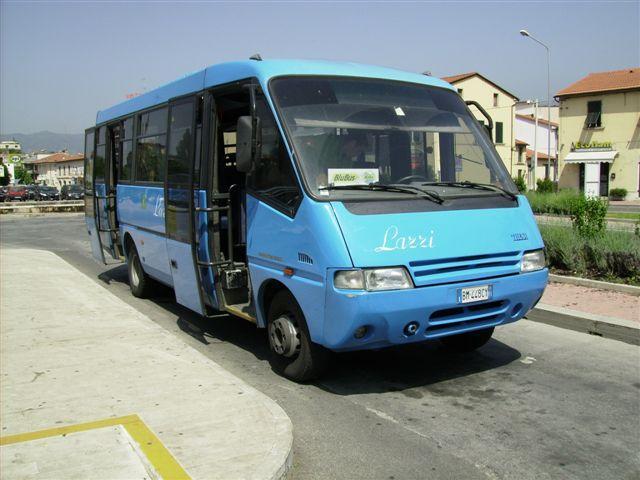

Brand: CACCIAMALI
Model: 59E12 Thesi 16/64 2p
Type: Mini city bus
Built in: n.d.
Weight: 6400 kg
Power: 90 kW
Power supply: Internal combustion diesel engine
Capacity: 2800 cc

_{(1) Expanded uncertainty}

Referente: AUSL 7 Siena - Laboratorio Agenti Fisici
Nome: Nicola Stacchini ( [email protected])
Location: Provincia di LIVORNO
on 2007-07-03
Ground / road type: asphalt cement
Ground / road conditions: Road: smooth (or good condition)
Forward speed (IN ITALIAN): moderata

SEDILE
Seat type: di serie
Seat brand: NON DISPONIBILE
Seat model: NON DISPONIBILE
Seat suspension type: Meccanica
Potential adjustments of the seat: peso e altezza
Armrests: Presenti

Conditions of measurement

Values related to the vibration worst case position: sedile

a _wx (Mean): 0.1 m/s²	a _wy (Mean) 0.1 m/s²	a _wz (Mean) 0.4 m/s²
dev. std. x 1,645: 0.02 m/s²	dev. std. x 1,645: 0.02 m/s²	dev. std. x 1,645: 0.14 m/s²
Mean + (dev. std. x 1,645): 0.1 m/s²	Mean + (dev. std. x 1,645): 0.1 m/s²	Mean + (dev. std. x 1,645): 0.5 m/s²
x 1.4 0.2 m/s²	X 1.4 0.2 m/s²	x 1 0.5 m/s²	a _{wv max} 0.5 m/s²

Valori relativi alla posizione peggiore: sedile

VDV _wx (Mean): 2.6 m/s^1.75	VDV _wy (Mean) 7.7 m/s^1.75	VDV _wz (Mean) 8.4 m/s^1.75
dev. std. x 1,645: 0.73 m/s^1.75	dev. std. x 1,645: 10 m/s^1.75	dev. std. x 1,645: 1.56 m/s^1.75
Mean + (dev. std. x 1,645): 3.3 m/s^1.75	Mean + (dev. std. x 1,645): 17.7 m/s^1.75	Mean + (dev. std. x 1,645): 10 m/s^1.75
x 1.4 4.7 m/s^1.75	X 1.4 24.7 m/s^1.75	x 1 10 m/s^1.75	VDV _{wv 8h max} 24.7 m/s^1.75

Referente: AUSL 7 Siena - Laboratorio Agenti Fisici
Nome: Nicola Stacchini ( [email protected])
Location: Provincia di LIVORNO
on 2007-07-03
Ground / road type: Road: unpaved road, dirt track, washboard road
Ground / road conditions: Road: smooth (or good condition)
Forward speed (IN ITALIAN): moderata

Conditions of measurement

Values related to the vibration worst case position: sedile

a _wx (Mean): 0.2 m/s²	a _wy (Mean) 0.3 m/s²	a _wz (Mean) 0.8 m/s²
dev. std. x 1,645: 0 m/s²	dev. std. x 1,645: 0.02 m/s²	dev. std. x 1,645: 0.08 m/s²
Mean + (dev. std. x 1,645): 0.2 m/s²	Mean + (dev. std. x 1,645): 0.3 m/s²	Mean + (dev. std. x 1,645): 0.9 m/s²
x 1.4 0.3 m/s²	X 1.4 0.5 m/s²	x 1 0.9 m/s²	a _{wv max} 0.9 m/s²

Valori relativi alla posizione peggiore: sedile

VDV _wx (Mean): 4.6 m/s^1.75	VDV _wy (Mean) 7.1 m/s^1.75	VDV _wz (Mean) 15.9 m/s^1.75
dev. std. x 1,645: 0.37 m/s^1.75	dev. std. x 1,645: 1.52 m/s^1.75	dev. std. x 1,645: 0.61 m/s^1.75
Mean + (dev. std. x 1,645): 5 m/s^1.75	Mean + (dev. std. x 1,645): 8.7 m/s^1.75	Mean + (dev. std. x 1,645): 16.5 m/s^1.75
x 1.4 7 m/s^1.75	X 1.4 12.1 m/s^1.75	x 1 16.5 m/s^1.75	VDV _{wv 8h max} 16.5 m/s^1.75

Declared values as set forth in the standard UNI ISO 2631-1:2014

CONDITIONS

No declared data

Referente:
Location: Montecatini
on 2009-05-18
Ground / road type: Road: asphalt
Ground / road conditions: Road: smooth (or good condition)
Forward speed (IN ITALIAN): lenta

SEDILE
Seat type: di serie
Seat brand: NON DISPONIBILE
Seat model: NON DISPONIBILE
Seat suspension type: NON INDICATA
Potential adjustments of the seat: NON INDICATO
Armrests: Assenti

Conditions of measurement

Values related to the vibration worst case position: sedile

a _wx (Mean): 0.2 m/s²	a _wy (Mean) 0.2 m/s²	a _wz (Mean) 0.4 m/s²
dev. std. x 1,645: 0.05 m/s²	dev. std. x 1,645: 0.03 m/s²	dev. std. x 1,645: 0.1 m/s²
Mean + (dev. std. x 1,645): 0.2 m/s²	Mean + (dev. std. x 1,645): 0.2 m/s²	Mean + (dev. std. x 1,645): 0.5 m/s²
x 1.4 0.3 m/s²	X 1.4 0.3 m/s²	x 1 0.5 m/s²	a _{wv max} 0.5 m/s²
