Machine technical sheet

Measurements in the field (Click to view the measurements in the field)

0.7 m/s²

WORK ACTIVITY: TRANSPORTATION (TRANSFER)
Features of the work activity (in ITALIAN): spostamenti inerti ceneri
SECTOR: Manufacture of steel, iron and cast iron
ACCESSORY: Bucket
Features of the accessory (in ITALIAN): benna ruspa
Ground / road conditions: Ground: presence of potholes
Forward speed (IN ITALIAN): moderata

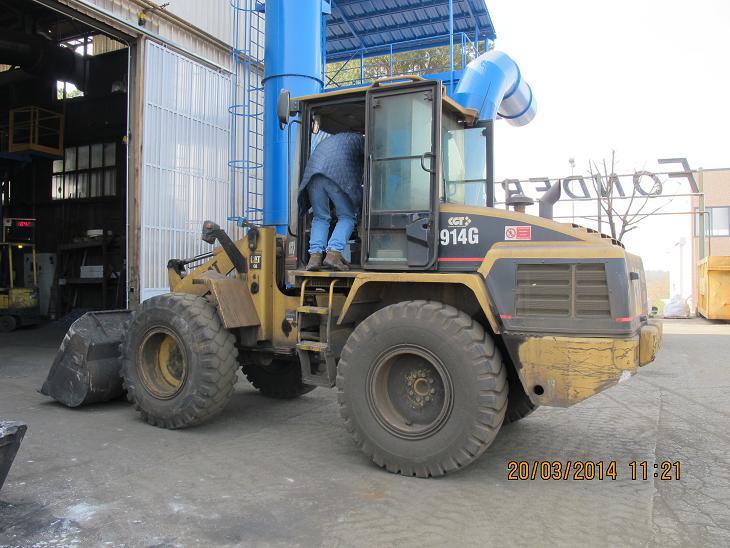

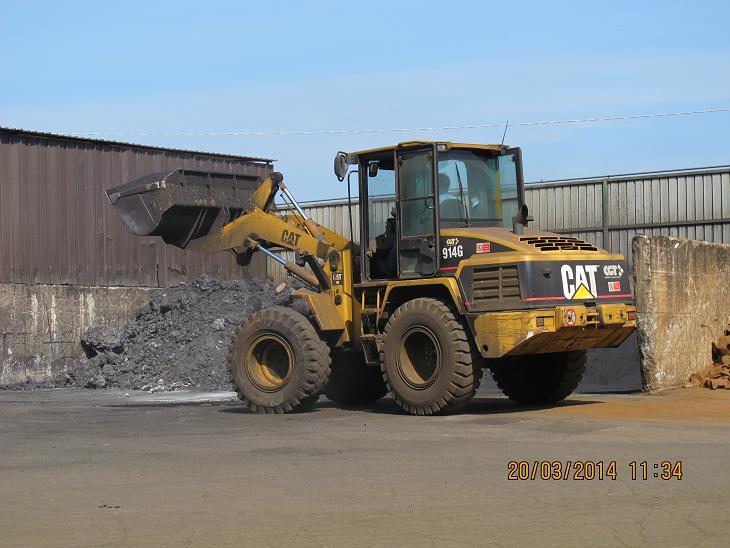

Brand: CATERPILLAR - CAT
Model: 914 G
Type: Wheel loader
Built in: n.d.
Weight: 8350 kg
Power: 67 kW
Power supply: Internal combustion diesel engine

_{(1) Expanded uncertainty}

Declared values as set forth in the standard UNI EN 7096:2009

CONDITIONS

No declared data

Referente: AUSL Toscana Sud Est-LSP-Lab. Agenti Fisici
Nome: Iole Pinto - Nicola Stacchini - Andrea Bogi ( [email protected])
Location: Monteriggioni (SI)
on 2014-03-20
MATERIAL (in ITALIAN): ceneri di fonderia
Ground / road type: asphalt cement
Ground / road conditions: Ground: presence of potholes
Forward speed (IN ITALIAN): moderata

SEDILE
Seat type: di serie
Seat brand: NON DISPONIBILE
Seat model: NON DISPONIBILE
Seat suspension type: Meccanica
Potential adjustments of the seat: peso e altezza
Armrests: Presenti

Conditions of measurement

Values related to the vibration worst case position: sedile

a _wx (Mean): 0.5 m/s²	a _wy (Mean) 0.3 m/s²	a _wz (Mean) 0.7 m/s²
dev. std. x 1,645: 0.02 m/s²	dev. std. x 1,645: 0.05 m/s²	dev. std. x 1,645: 0.05 m/s²
Mean + (dev. std. x 1,645): 0.5 m/s²	Mean + (dev. std. x 1,645): 0.4 m/s²	Mean + (dev. std. x 1,645): 0.7 m/s²
x 1.4 0.7 m/s²	X 1.4 0.5 m/s²	x 1 0.7 m/s²	a _{wv max} 0.7 m/s²
