Machine technical sheet

Measurements in the field (Click to view the measurements in the field)

1 m/s²

WORK ACTIVITY: TRANSPORTATION (TRANSFER)
Features of the work activity (in ITALIAN): spostamenti su strada interna
SECTOR: Growing of crops
ACCESSORY: IRRELEVANT
Ground / road conditions: Ground: presence of potholes
Forward speed (IN ITALIAN): moderata

VDV_8h

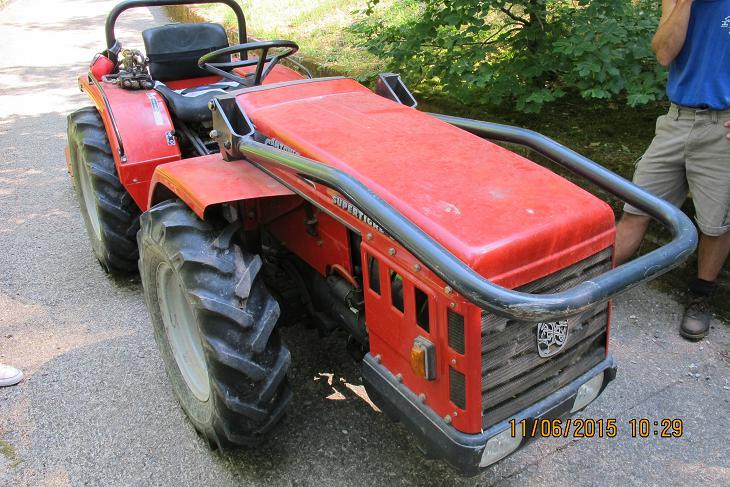

Brand: CARRARO
Model: Supertigre 5000
Type: Wheeled tractor
Built in: n.d.
Weight: 1900 kg
Power: 31 kW
Power supply: Internal combustion diesel engine

_{(1) Expanded uncertainty}

Referente: AUSL 7 Siena - Laboratorio Agenti Fisici
Nome: Nicola Stacchini ( [email protected])
Location: Siena
on 2015-06-11
Ground / road type: Road: unpaved road, dirt track, washboard road
Ground / road conditions: Ground: presence of potholes
Forward speed (IN ITALIAN): moderata

SEDILE
Seat type: di serie
Seat brand: NON DISPONIBILE
Seat model: NON DISPONIBILE
Seat suspension type: Nessuna
Potential adjustments of the seat: assente
Armrests: Assenti

Conditions of measurement

Values related to the vibration worst case position: sedile

a _wx (Mean): 0.3 m/s²	a _wy (Mean) 0.2 m/s²	a _wz (Mean) 0.9 m/s²
dev. std. x 1,645: 0.04 m/s²	dev. std. x 1,645: 0.03 m/s²	dev. std. x 1,645: 0.13 m/s²
Mean + (dev. std. x 1,645): 0.3 m/s²	Mean + (dev. std. x 1,645): 0.2 m/s²	Mean + (dev. std. x 1,645): 1 m/s²
x 1.4 0.5 m/s²	X 1.4 0.3 m/s²	x 1 1 m/s²	a _{wv max} 1 m/s²

Declared values as set forth in the standard NON DISPONIBILE

CONDITIONS

No declared data

Valori relativi alla posizione peggiore: sedile

VDV _wx (Mean): 7.4 m/s^1.75	VDV _wy (Mean) 4.3 m/s^1.75	VDV _wz (Mean) 19.4 m/s^1.75
dev. std. x 1,645: 0.66 m/s^1.75	dev. std. x 1,645: 1.33 m/s^1.75	dev. std. x 1,645: 5.25 m/s^1.75
Mean + (dev. std. x 1,645): 8.1 m/s^1.75	Mean + (dev. std. x 1,645): 5.7 m/s^1.75	Mean + (dev. std. x 1,645): 24.6 m/s^1.75
x 1.4 11.3 m/s^1.75	X 1.4 7.9 m/s^1.75	x 1 24.6 m/s^1.75	VDV _{wv 8h max} 24.6 m/s^1.75
